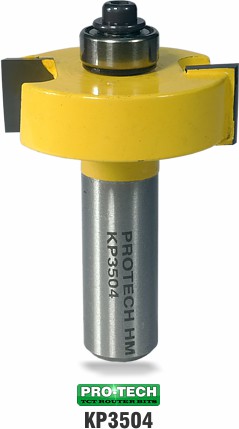

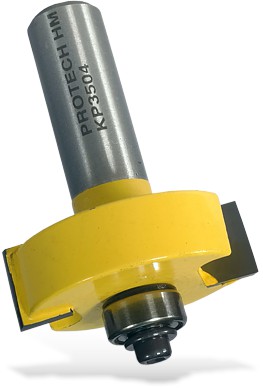

RABBETING BIT 1 1/2' X 1/2' DEPTH 1/2' 1/2'SHANK

Name: RABBETING BIT 1 1/2' X 1/2' DEPTH 1/2' 1/2'SHANK
Brand: PRO-TECH
SKU: KP3504
Price: 418.30 ZAR
Availability: InStock

Tags: Pro-Tech , Router bits , Rabbeting Bit , Brand PRO-TECH

This product qualifies for free shipping

Easily add or remove custom info blocks on any product. Define rules on which blocks can appear, such as a certain price, category, brand or options.

Stock: In Stock
Model: KP3504
SKU: KP3504
UPC: 6009600404496
MPN: 1

PRO-TECH

150 samples sold

180 views

R 418.30

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Modern and Trendy

Create the best layouts with the new Journal 3 page builder

Best Typography Options

So many options, so much flexibility, it will blow your mind

30+ Modules

The best multi-purpose modules already built in

Built with Love

Tons of love has gone into Journal throughout the years

Rabbeting Cutter

For cutting rebates

Rabbet: (răb′ĭt) also re·bate (rē′bāt′,răb′ĭt)
A cut or groove along or near the edge of a piece of wood that allows another piece to fit into it to form a joint.

By choosing alternateive bearings with a larger outside diameter, the depth of cut can be reduced. The cutting height can be increased with multiple passess.

Pupular with picture framers and joinery where a lap joint is required.

Refer to the specification tab for the optonal alternative bearing choices offered by us.

PRO-TECH router bits are manufactured in Taiwan.

Router Bit Maintenance

Fortunately, this is pretty easy. The best way to prolong the life of a router bit is to keep it clean. And what you need to do varies with the type of bit.

Note: Sharpening is extremely important too.

Bits with Bearings:

To clean bits with bearings, first, remove the bearing. Then clean the bit as you did with non-bearing bits.

It's important to remove the bearings because even though router bearings are 'sealed,' resin remover can sneak in and dissolve the bearing grease. If this were to happen, you would be faced with the problem of trying to lubricate a sealed bearing.

Despite the claims of bearing grease sellers, we've never had much luck with this. Once that grease is gone, just go buy a new bearing.

Bit Shanks:

Periodically inspect the shanks of your router bits for rust or burrs. Either of these can be removed quickly with ScotchBrite^®. Left on, they can interfere with your ability to properly tighten the bit in the collet.

Part number	Cutting width	Cutting height	Depth	Shank
KP3504	1 ¹/₂ inch	¹/₂ inch	¹/₂ inch	¹/₂ inch
KP3504	38.1 mm	12.7 mm	12.7 mm	12.7 mm

Optional bearings to alter the cutting depth

Part number	Bearing size
KP3503-1	⁵/₈ inch OD x ³/₁₆ inch ID
KP3503-2	³/₄ inch OD x ³/₁₆ inch ID
KP3503-3	⁷/₈ inch OD x ³/₁₆ inch ID
KP3503-4	1 inch OD x ³/₁₆ inch ID
KP3503-5	1 ¹/₈ inch OD x ³/₁₆ inch ID
KP3503-6	1 ¹/₄ inch OD x ³/₁₆ inch ID

* OD = Outside diameter ID = Inside diameter
Length of shank: 38 mm
