Pressure Gauge 0-20bar1/4rear 63mm D6314r20 Packaged

Tags: Brand GAV , GAV , M63RP , Pressure Gauge , 63mm Pressure Gauge , 1/4 BSP Rear Pressure Gauge , 0-20 Bar Pressure Gauge , Compressed Air Gauge , Pneumatic Pressure Gauge , D6314R20 , Packaged

Pressure Gauge 0-20bar1/4rear 63mm D6314r20 Packaged

Stock: In Stock
Model: GAV M63RP 8962
Weight: 0.08kg
Dimensions: 63.00mm x 44.00mm x 44.00mm
SKU: GAV M63RP
UPC: 6009515844110

Based on 0 reviews. - Write a review

R 237.00

Ex VAT: R 206.09

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

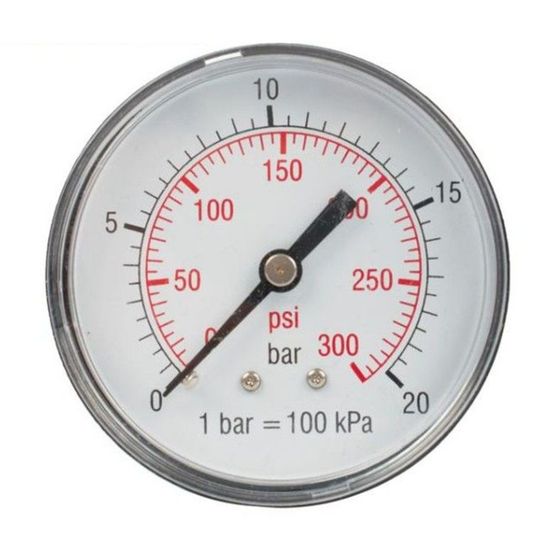

GAV pressure gauge 0–20 Bar 63mm 1/4" rear packaged

At a Glance: Professional 63 mm analogue pressure gauge with a 1/4" BSP rear connection, dual Bar/PSI scale, 0–20 Bar measuring range and retail blister packaging.

The GAV M63RP is a professional analogue pressure gauge designed for accurate monitoring of compressed-air systems. Featuring a large 63 mm dial with dual Bar and PSI scales, it provides clear pressure readings for compressors, pressure regulators, FRL units and industrial pneumatic equipment. The gauge is fitted with a 1/4" BSP male rear connection and measures pressures from 0–20 Bar (0–300 PSI), making it ideal for higher-pressure compressed-air applications. Supplied in retail blister packaging and manufactured in Italy, the GAV M63RP delivers the quality, durability and accuracy expected from genuine GAV pneumatic components. :contentReference[oaicite:0]{index=0}

Reliable pressure monitoring for high-pressure pneumatic systems

The GAV M63RP provides dependable pressure indication that helps optimise pneumatic equipment performance, improve system efficiency and protect air equipment from excessive operating pressures.

Product highlights

Large 63 mm dial Easy-to-read analogue display.
Dual pressure scale Displays pressure in both Bar and PSI.
1/4" BSP male rear connection Suitable for regulators and compressed-air equipment.
0–20 Bar measuring range Ideal for higher-pressure pneumatic applications.
Retail blister packaging Ideal for retail display and protected storage.
Made in Italy Genuine GAV professional quality.

Features

Analogue Bourdon tube mechanism Provides reliable mechanical pressure measurement.
Rear-entry mounting Designed for pressure regulators and FRL assemblies.
Dual Bar/PSI scale Allows quick pressure reference.
Durable metal housing Suitable for workshop and industrial environments.

Benefits

Accurate pressure monitoring: Helps maintain optimum compressed-air system performance.
Protects pneumatic equipment: Reduces the risk of over-pressurisation.
Easy installation: Standard 1/4" BSP rear thread fits many pneumatic systems.
Long service life: Built for demanding industrial use.

Application

Air compressors
Pressure regulators
FRL air preparation units
Compressed-air distribution systems
Pneumatic machinery
Industrial workshops

Extra Information

Designed for compressed-air applications.
Rear-entry mounting configuration.
Supplied in retail blister packaging.
Manufactured in Italy.

Pro Tips

Install the gauge using PTFE tape or an approved thread sealant without obstructing the pressure port.
Mount the gauge where it is easy to read during normal operation.
Avoid exposing the gauge to excessive vibration or mechanical shock.
Compare readings periodically with a calibrated reference gauge where precision is important.
Install downstream of the pressure regulator to monitor regulated outlet pressure accurately.
Replace damaged or inaccurate gauges immediately to maintain safe and reliable operation.

How to Use

Depressurise the compressed-air system.
Install the gauge into a compatible 1/4" BSP rear-entry port.
Apply thread sealant where required.
Pressurise the system gradually.
Monitor the pressure reading and adjust the regulator if necessary.
Inspect the gauge regularly for damage or inaccurate readings.

Specifications

Description	Spec
Brand	GAV
Cat No.	M63RP
Model	D6314R20
Product Type	Analogue pressure gauge
Dial Diameter	63 mm
Connection Position	Rear
Thread Size	1/4" BSP Male
Pressure Range	0–20 Bar (0–300 PSI)
Display	Dual Bar / PSI Scale
Packaging	Blister Pack
Application	Compressed-air systems
Country of Manufacture	Italy

In the box:

1 x GAV M63RP pressure gauge
Retail blister packaging

Safety

Always depressurise the compressed-air system before installation or removal.
Do not exceed the maximum pressure rating of 20 Bar.
Protect the gauge from impact and excessive vibration.
Inspect the lens and pointer regularly for signs of damage.
Use only with compatible compressed-air and pneumatic applications.
